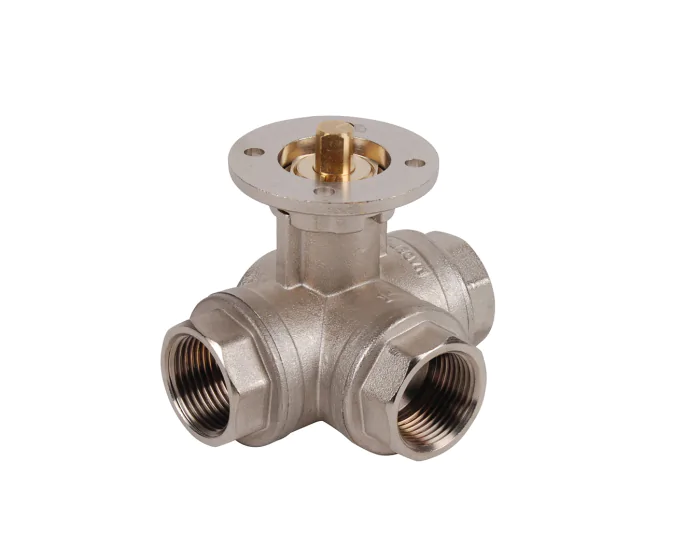

The 514 XS series is a 3-way T-port brass ball valve. ACS certified, reduced bore, nickel-plated CW617N brass body, PTFE seats, FKM stem tightness. PS: 16 bar, TS: -10°C/+100°C. Delivered with a bare shaft for direct mounting automation.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Shaft/stem matérial | Brass 614N |
| ATEX compatible | No |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 76.0 |
| Body material | Brass CW617N |
| PS (bar) | 16 |
| Connections | BSP FF |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N DN8 - 1/4'' | 275030 | S1010030 |
€46.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN10 - 3/8'' | 275031 | S1010031 |
€46.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN15 - 1/2'' | 275032 | S1010032 |
€46.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN20 - 3/4'' | 275033 | S1010033 |
€53.04
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN25 - 1'' | 275034 | S1010034 |
€83.66
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN32 - 1''1/4 | 275035 | S1010035 |
€102.44
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN40 - 1''1/2 | 275036 | S1010036 |
€161.96
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N DN50 - 2'' | 275037 | S1010037 |
€258.81
(excl. btw)
|
add to cart |
